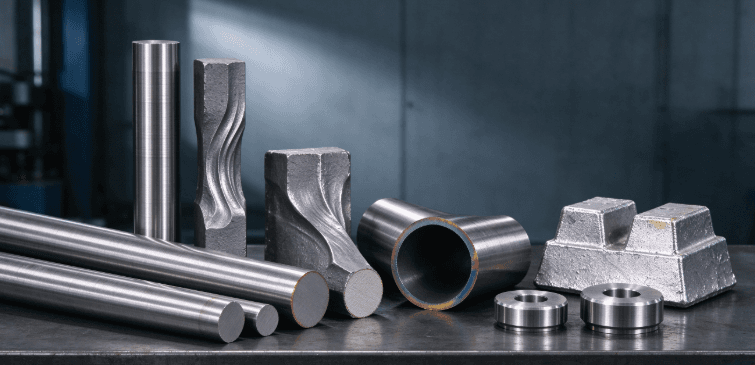

Selecting High-Nickel and High-Chromium Alloy Castings for Continuous Annealing Lines
If you've ever been responsible for specifying components for a continuous annealing line, you already know this much: the operating environment is relentless. Strip steel moving at speed, temperatures that hover around 800 to 1200°C, and an atmosphere that can be oxidizing, carburizing, or both. And somewhere in the middle of all that, you've got furnace rolls, radiant tubes, and support components that have to hold up—day after day, cycle after cycle.
I've sat through enough post-mortem meetings to know that alloy selection for continuous annealing lines (CAL) and continuous galvanizing lines (CGL) isn't something you can afford to get wrong. The wrong material doesn't just wear out faster—it fails catastrophically, taking the line down with it. And in a steel mill, every hour of downtime is measured in six figures.
Let me walk you through what actually matters when you're selecting high-nickel and high-chromium alloy castings for continuous annealing line applications.
Understanding the Continuous Annealing Line Environment
Let's start with what we're actually dealing with.
Continuous annealing lines are used in steel mills to process cold-rolled sheet, galvanized sheet, and silicon steel. The strip moves through a furnace where it's heated to relieve internal stresses and improve mechanical properties. The furnace operates at temperatures typically ranging from 800 to 1200°C—and in some cases, up to 1250°C.
Here's the thing. The components inside these furnaces don't just sit there. Radiant tubes provide indirect heating by burning gas inside the tube, with tube temperatures exceeding strip temperature by 50-100°C. Furnace rolls support and transport the strip through the furnace. Both are subjected to thermal cycling, mechanical loading, and atmospheric attack.
The primary factors for choosing alloy castings in this environment are tube temperature and the furnace atmosphere. Oxidation resistance, carburization resistance, creep strength, and thermal fatigue resistance all matter. And the selection has to balance performance against cost.
The Alloy Families: HK, HP, HT, HU, and Beyond
When you start looking at high-nickel and high-chromium alloy castings for CAL applications, you'll encounter a alphabet soup of designations. Let me break down the ones that actually matter.
HK Alloy (25Cr-20Ni)
HK is the baseline. With nominal composition of approximately 25% chromium and 20% nickel, HK has been a workhorse in heat-resistant applications for decades. It offers good oxidation resistance and moderate creep strength.
In continuous annealing applications, HK is often used for furnace rolls and lower-temperature radiant tube applications. But as operating temperatures have crept up, HK has increasingly been pushed to its limits.
HP Alloy (25Cr-35Ni)
HP represents a significant step up. With approximately 25% chromium and 35% nickel, HP offers superior creep rupture strength compared to HK. The higher nickel content also improves resistance to carburization.
HP is widely used in radiant tubes for continuous annealing furnaces. The cast alloy of choice in continuous annealing applications is often HP/HT (35% Ni, 17% Cr).
HT Alloy (15Cr-35Ni)
HT is somewhat different. With 15% chromium and 35% nickel, HT offers excellent carburization resistance due to the high nickel content, but lower oxidation resistance than HK or HP in clean air. HT is often specified where HK grades have insufficient life.
HP Modified with Niobium (HP-Nb)
Here's where things get interesting. Niobium (Nb) additions to HP alloys significantly improve creep rupture strength. Studies have shown that adding approximately 1.5% niobium to HP alloy provides optimal creep rupture strength.
Nb-modified HP alloys are increasingly specified for demanding CAL applications where long-term creep resistance is critical. The strength increases have been observed during laboratory accelerated creep testing at temperatures between 900°C and 1204°C.
50Cr-50Ni
At the top end of the performance spectrum is 50Cr-50Ni. This alloy offers exceptional oxidation and corrosion resistance, particularly against fuel ash corrosion. It's the only material with reasonable creep strength up to 1000°C. It's used in the most demanding CAL and CGL applications.
Other Alloys
HU, HW, and 24/24NbTiZr are also available for specialized applications. The selection depends on specific temperature, atmosphere, and load requirements.
Key Performance Factors: Creep, Oxidation, and Carburization
Let me be direct about the three things that kill components in continuous annealing lines.
Creep Strength
Creep is the slow, time-dependent deformation that occurs when a material is subjected to stress at elevated temperatures. In continuous annealing lines, components are under constant mechanical load at high temperatures for extended periods.
The operating temperature range of 800-1200°C is exactly where creep becomes a dominant failure mechanism. HK40, HP50, and Nb-modified HP alloys are all evaluated for their creep rupture strength. The addition of niobium to HP significantly improves creep performance.
For applications above 850-900°C, HP and its modifications become the preferred choice over HK.
Oxidation Resistance
Oxidation is the formation of oxide scale on the metal surface. In an oxidizing atmosphere, the chromium content of the alloy forms a protective chromium oxide (Cr₂O₃) scale. Higher chromium content generally means better oxidation resistance.
HK (25% Cr) and HP (25% Cr) both offer good oxidation resistance. HT (15% Cr) has lower oxidation resistance in clean air. 50Cr-50Ni offers exceptional oxidation resistance.
Carburization Resistance
Carburization is the absorption of carbon into the metal surface, which can lead to embrittlement and premature failure. This is particularly relevant in continuous annealing lines where the furnace atmosphere may contain carbon-bearing gases.
Higher nickel content improves resistance to carburization. HT, with 35% nickel, offers excellent carburization resistance. HP, also with 35% nickel, provides superior carburization resistance compared to HK.
Centrifugal Casting: Why It Matters for CAL Components
Now let's talk about how these alloys are actually made into components. Because the casting method matters as much as the alloy chemistry.
Centrifugal casting is the dominant manufacturing method for radiant tubes and furnace rolls in continuous annealing lines. The process involves pouring molten metal into a rotating mold, where centrifugal force distributes the metal uniformly against the mold wall.
Advantages of Centrifugal Casting
Density and soundness. Centrifugal casting produces components with high density and minimal porosity. The centrifugal force pushes impurities toward the inner diameter, where they can be machined away.
Grain structure. The rapid solidification produces a fine, columnar grain structure that's oriented in the direction of maximum stress. This improves creep resistance compared to static castings.
Large diameters. Centrifugal casting can produce components with outer diameters from 60mm to 2400mm. Furnace rolls for CAL applications often fall at the larger end of this range.
Thin walls. Advances in centrifugal casting technology have enabled thinner tube walls—from 3/8-inch down to 1/4-inch. However, thinner walls can reduce tube life, so the trade-off between initial cost and service life needs careful evaluation.
Quality Control
Reputable manufacturers perform comprehensive inspection on centrifugal castings: chemical analysis by spectrometer for each heat, non-destructive testing (UT, RT, PT, MT), dimensional checks, and mechanical testing. This level of quality control is essential for components that operate in such demanding environments.
Component-Specific Selection: Radiant Tubes vs. Furnace Rolls
The alloy selection criteria differ depending on whether you're specifying radiant tubes or furnace rolls.
Radiant Tubes
Radiant tubes are the heating elements. Gas is burned inside the tube, and the tube radiates heat to the strip and furnace walls. The tube temperature exceeds the strip temperature by 50-100°C.
Primary failure modes: Creep, oxidation, and thermal fatigue.
Preferred alloys: HP/HT (35% Ni, 17% Cr) is the cast alloy of choice for continuous annealing radiant tubes. For higher temperatures, 50Cr-50Ni and Nb-modified HP alloys are used. In one documented case, Inconel 601 wrought alloy radiant tubes failed after a fraction of their rated service life due to excessive temperature exposure—reinforcing the importance of matching alloy to actual operating conditions.
Radiant tubes are available in various shapes: U-type, W-type, straight, electric, and custom configurations. W-type radiant tubes are commonly used in continuous annealing furnaces for galvanizing units.
Furnace Rolls
Furnace rolls support and transport the strip through the furnace. They're subject to mechanical loading in addition to thermal and atmospheric attack.
Primary failure modes: Creep, thermal fatigue, and mechanical wear.
Preferred alloys: A wide range of alloys are used for furnace rolls, including HU, HT, HK, HP, HW, and 50Cr/50Ni. The selection depends on operating temperature, load, and atmosphere.
Precision-cast ZG45Cr25Ni20Si2 (310S equivalent) furnace rollers are designed for demanding heat treatment applications up to 1150°C continuous operation. High chromium-nickel content and silicon addition help these rollers outperform standard 304 rollers by 5-8x lifespan in oxidizing and carburizing atmospheres.
Furnace rolls are typically manufactured by centrifugal casting for the barrel, with forged shafts and static-cast or investment-cast cones.
Material Standards and Certification
When you're sourcing high-nickel and high-chromium alloy castings, you need to know what standards apply.
ASTM A297
ASTM A297/A297M is the standard specification for iron-chromium and iron-chromium-nickel alloy castings for heat-resistant service. It covers general-purpose grades and is the baseline for heat-resistant castings.
ASTM A608
ASTM A608 covers centrifugally cast iron-chromium-nickel high-alloy tubes for pressure applications at high temperatures. This is particularly relevant for radiant tubes.
DIN Standards
DIN 10295 covers centrifugally cast tubes for heat-resistant applications. DIN designations like 1.4848, 1.4849, 1.4852, and 2.4879 are commonly used in European-sourced components.
Chinese Standards
GB/T standards apply for components manufactured in China. ZG designations like ZG40Cr25Ni20Si2, ZG40Ni35Cr25Nb, and ZG45Ni48Cr28W5Si2 are commonly encountered.
What to Verify
When you receive a shipment, verify:
Chemical composition by spectrometer
Mechanical properties
Non-destructive testing results (UT/RT/PT/MT)
Dimensional accuracy
Material traceability from the original melt
Use only new raw materials like nickel plate and chrome iron—recycled material can compromise physical properties and service life.
Real-World Application: Radiant Tube Upgrade in a CAL
Let me share a situation that illustrates the importance of proper alloy selection.
A steel mill operating a continuous annealing line was experiencing premature failure of their radiant tubes. The tubes were failing after approximately 18 months of service—well below the expected 3-4 year service life. The failed tubes showed signs of both oxidation and creep deformation.
The original tubes were manufactured from a standard HK-type alloy (25Cr-20Ni). The operating temperature at the tube surface was measured at approximately 1070°C, which was at the upper end of HK's effective range.
The engineering team evaluated two alternatives: HP-Nb (25Cr-35Ni with niobium modification) and 50Cr-50Ni. HP-Nb offered improved creep strength at a moderate cost premium. 50Cr-50Ni offered superior oxidation resistance but at a significantly higher cost.
They selected HP-Nb for the replacement tubes. The upgrade cost approximately 25% more than the original HK tubes. But the HP-Nb tubes have been in service for over four years with no failures. The extended service life and elimination of unplanned downtime paid for the premium in less than two years.
What's the lesson? Sometimes the cheapest alloy isn't the cheapest solution. When you account for the cost of downtime, installation labor, and lost production, paying more for the right alloy is often the smarter financial decision.
Frequently Asked Questions
What's the most common alloy for continuous annealing line radiant tubes?
HP/HT (35% Ni, 17% Cr) is the cast alloy of choice for continuous annealing radiant tubes. For more demanding conditions, Nb-modified HP or 50Cr-50Ni may be specified.
What's the difference between HK and HP alloys?
HK contains approximately 25% chromium and 20% nickel. HP contains approximately 25% chromium and 35% nickel. The higher nickel content in HP provides superior creep strength and carburization resistance.
Why is niobium added to HP alloys?
Niobium (Nb) additions significantly improve creep rupture strength. The optimal niobium content is approximately 1.5%. Nb-modified HP alloys are used in demanding applications where long-term creep resistance is critical.
What temperature range do CAL components operate at?
Continuous annealing line components typically operate at 800 to 1200°C, with some applications reaching 1250°C. Radiant tubes operate at even higher temperatures—exceeding the strip temperature by 50-100°C.
What's the advantage of centrifugal casting for CAL components?
Centrifugal casting produces components with high density, minimal porosity, and a fine columnar grain structure that improves creep resistance. It can produce large diameters (up to 2400mm) and is the dominant manufacturing method for radiant tubes and furnace rolls.
What standards apply to heat-resistant alloy castings?
ASTM A297 covers iron-chromium-nickel heat-resistant castings. ASTM A608 covers centrifugally cast high-alloy tubes. DIN 10295 and various GB/T standards also apply depending on the manufacturing location.
How do I verify the quality of alloy castings?
Request chemical analysis by spectrometer for each heat, non-destructive testing (UT, RT, PT, MT), dimensional checks, and mechanical testing. Verify material traceability and ensure only new raw materials are used.
Final Thoughts
Look, I've been around enough steel mills to know that alloy selection for continuous annealing lines often gets treated as a commodity decision. "Just get the standard material" is something I hear all the time. And for some applications, that works.
But if you're running a CAL at high temperatures, if you're pushing the limits of your furnace, if you're dealing with premature failures—the alloy you choose matters.
The difference between HK and HP isn't academic. It's the difference between 18 months of service life and four years. The difference between standard HP and Nb-modified HP is the difference between acceptable creep performance and exceptional creep performance. The difference between HP and 50Cr-50Ni is the difference between managing oxidation and preventing it.
Yes, higher-performance alloys cost more. The premium for HP over HK might be 20-30%. The premium for HP-Nb over standard HP might be another 15-20%. And 50Cr-50Ni is in a different cost bracket entirely.
But when you calculate the total cost of ownership—the cost of the component, the cost of installation, the cost of unplanned downtime, the cost of lost production—the right alloy almost always pays for itself.
Choose based on your actual operating conditions. Verify the quality of what you're receiving. And don't cut corners on the materials that keep your line running.
